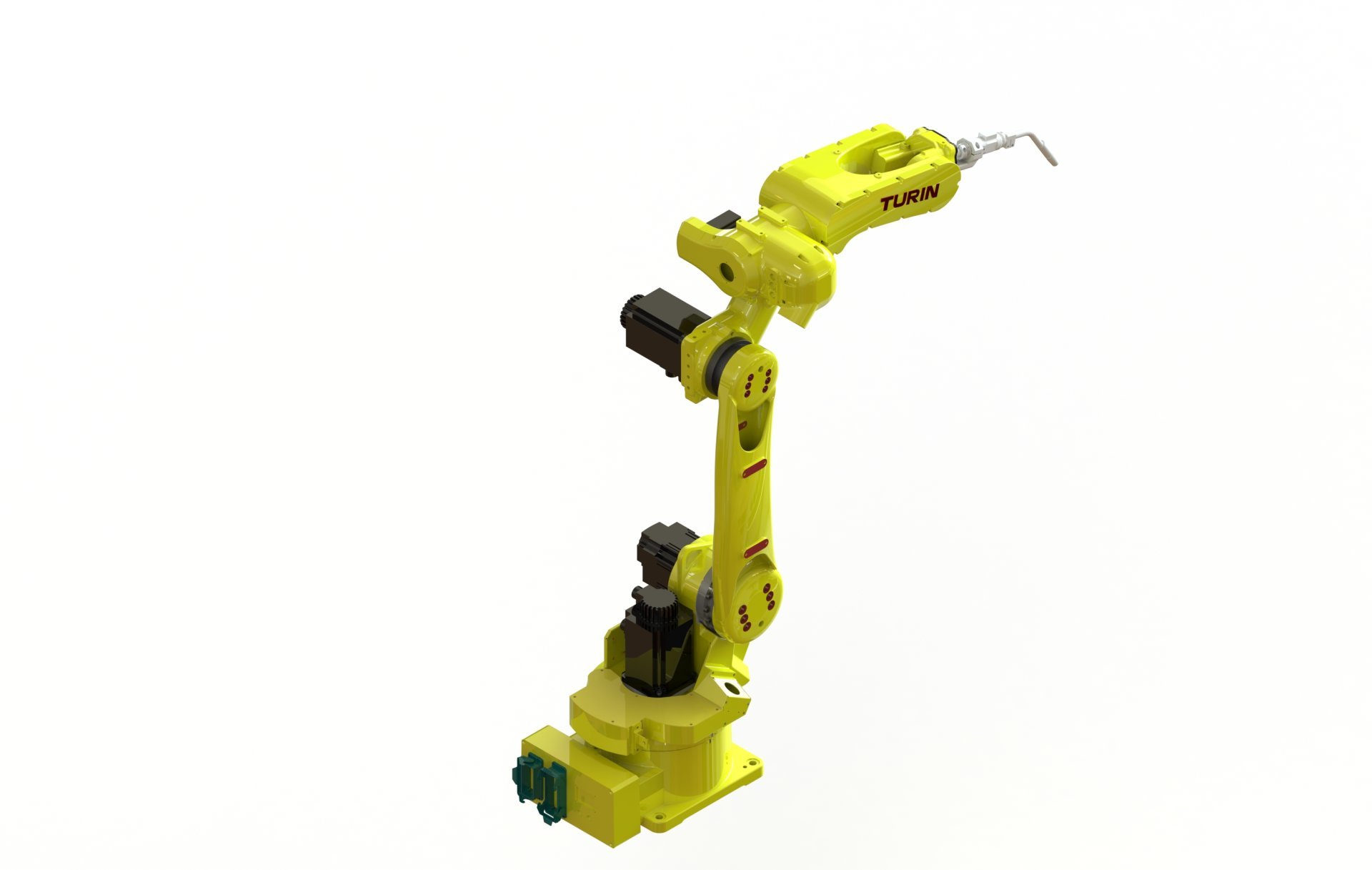

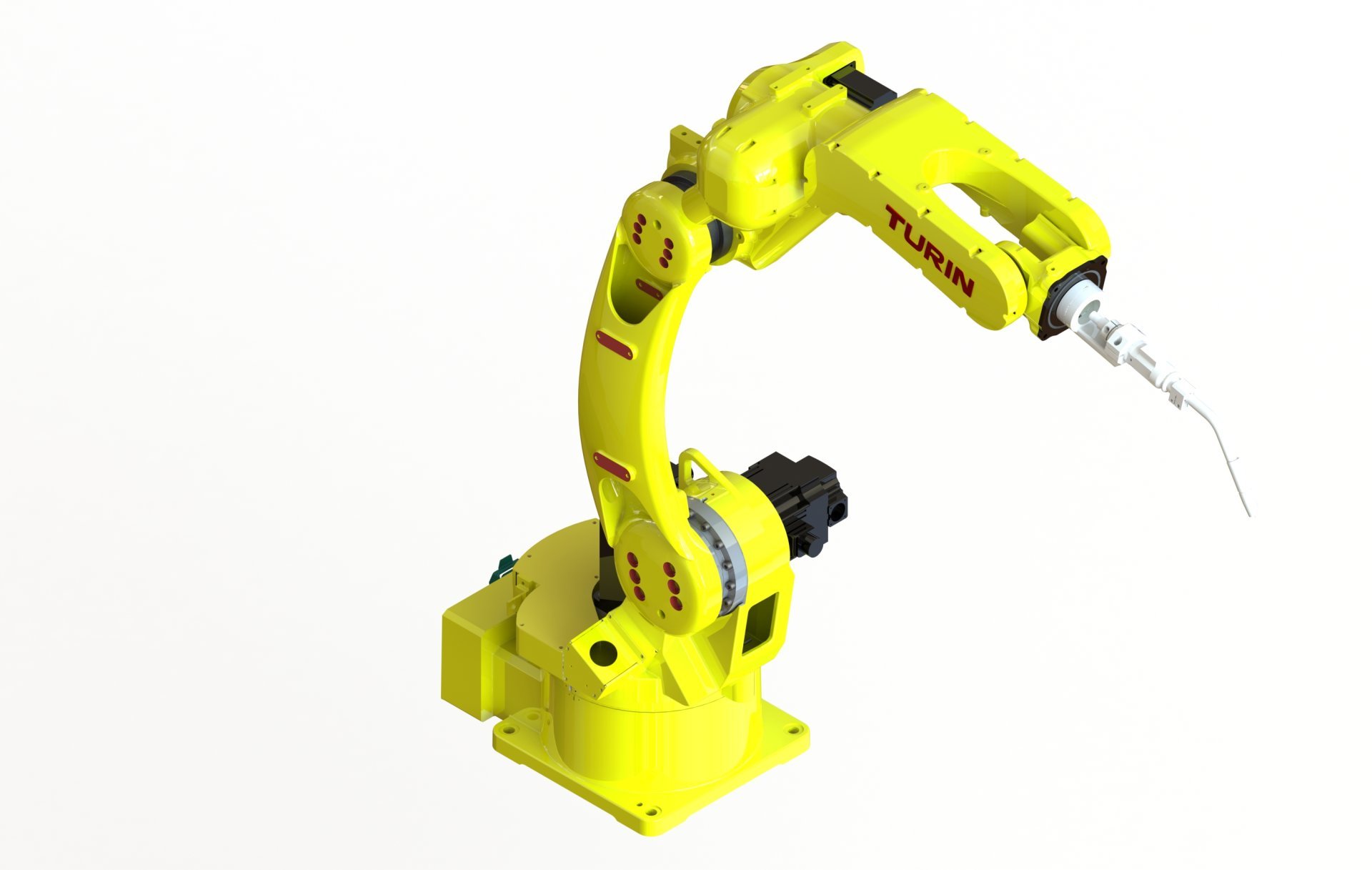

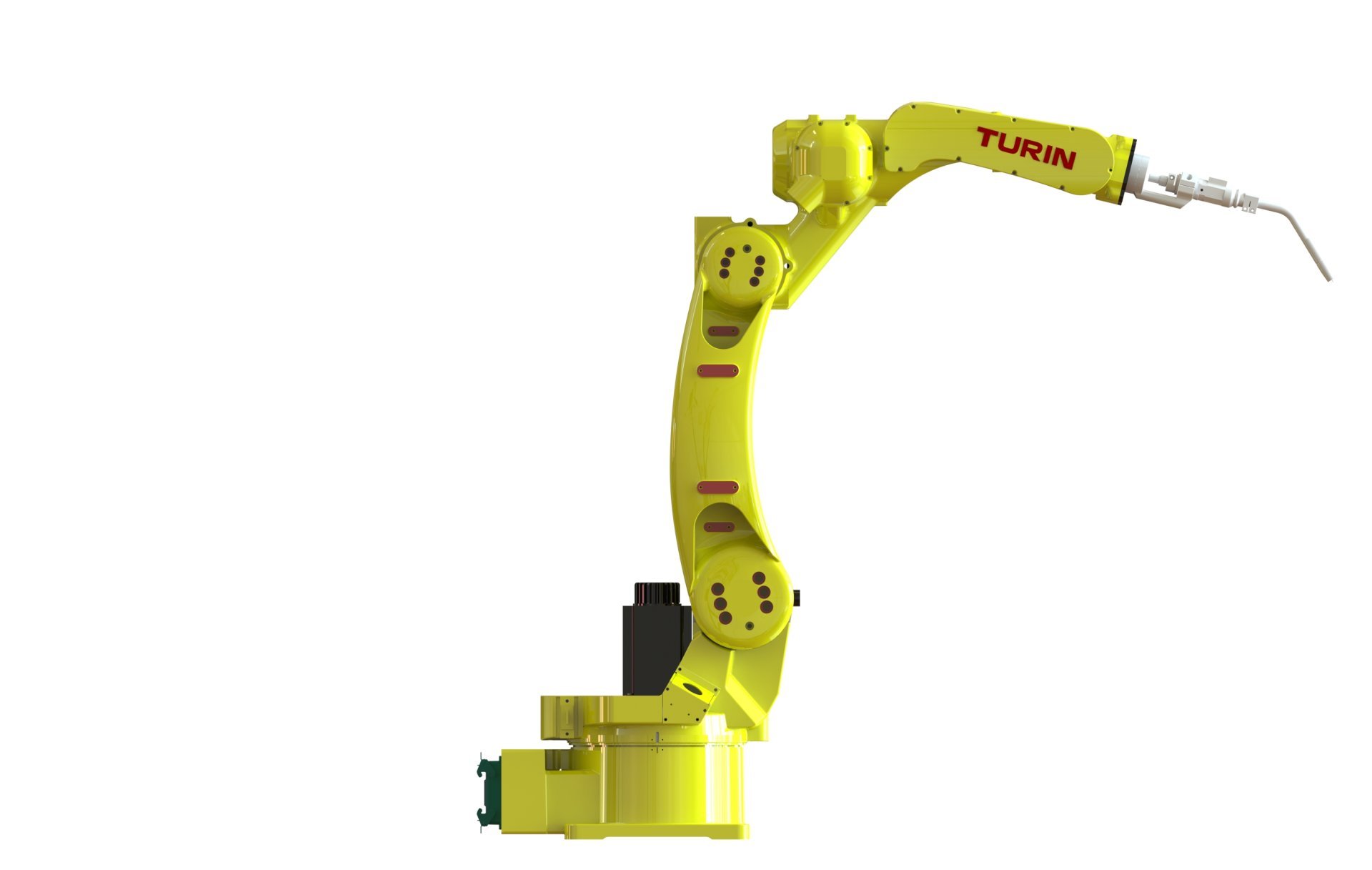

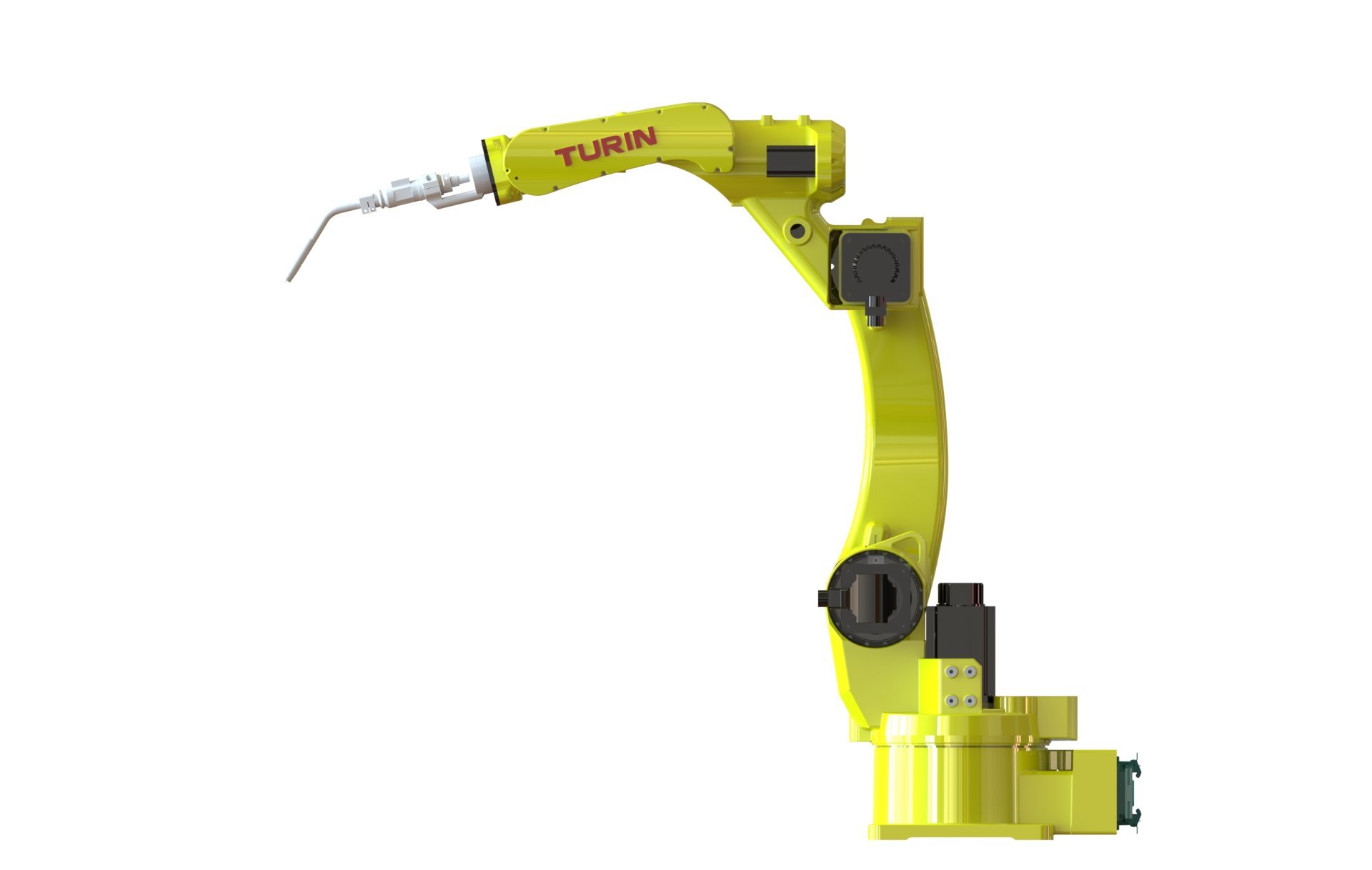

Model:TKB1440 Load:10kg Wingspan: 1455mm
Model:
TKB1440
Payload:
10kg
Arm Reach:
1455mm
keyword:
weld
Hardware polishing
carry
Due to improvements and optimizations, specifications and appearance may change without further notice. We apologize for any inconvenience caused!
Product Consultation:
Details
Parameter Table
TKB1440 |
|||
Rated Payload | 10kg | ||
Arm Reach | 1455mm | ||
Position Repeatability | ±0.05mm | ||
Protection Level | IP54 | ||
Structural Form | Vertical Multi-jointed Series Structure | ||
DOF | 6 | ||
Max Speed | J1 | 198°/s | |
J2 | 198°/s | ||
J3 | 210°/s | ||
J4 | 330°/s | ||
J5 | 450°/s | ||
J6 | 700°/s | ||
Max Operation Area | J1 | ±170° | |
J2 | -92°~153° | ||
J3 | -100°~75° | ||
J4 | ±190° | ||
J5 | ±130° | ||
J6 | ±360° | ||
Wrist Allowable Torque | J4 |
20Nm |
|
J5 | 20Nm | ||
J6 | 11Nm | ||
Maximum Allowable Inertia of the Wrist | J4 | 0.5kgm² | |
J5 | 0.5kgm² | ||
J6 | 0.16kgm² | ||
Rated Power | 4.3kw | ||
User Wiring | RVV10*0.2 | ||
User Piping | 1*Φ8mm | ||
User Distribution | single-phase AC220V-10%~+10% | ||
Applicable Environment | Temperature | 0~45°C | |
Humidity | 10%~80%RH | ||
Max Temperature Gradient | 1.5°C/min | ||
Body Weight |
155kg |
||
Control Cabinet | TRC5-B06 | ||
Installation Method | Floor-standing |
