TURIN Robot
TCR100
TCR100
Category:
Model：TCR100 Load：10kg Wingspan：1310mm
Model:
TCR100
Payload:
10kg
Arm Reach:
1310mm
keyword:
weld
stamping
Hardware polishing
搬运
Product Consultation:
Details
Parameter Table
| Model | TCR100 | |
| Load average | 10kg | |
| Maximum working radius | 1310mm | |
| Body weight | 43kg | |
| Rated power | 3.5kW | |
| Joint speed | J1 | 120°/s |
| J2 | 120°/s | |
| J3 | 120°/s | |
| J4 | 180°/s | |
| J5 | 180°/s | |
| J6 | 180°/s | |
| Joint range | J1 | ±175° |
| J2 | ±175° | |
| J3 | -245°~+65° | |
| J4 | ±175° | |
| J5 | ±175° | |
| J6 | ±360° | |
| Degree of protection | IP54/IP67 | |
| Repeatable positioning accuracy | ±0.05mm | |
| Control cabinet | TRC3-A06 | |
|
Operating temperature
|
0~45℃
|
|

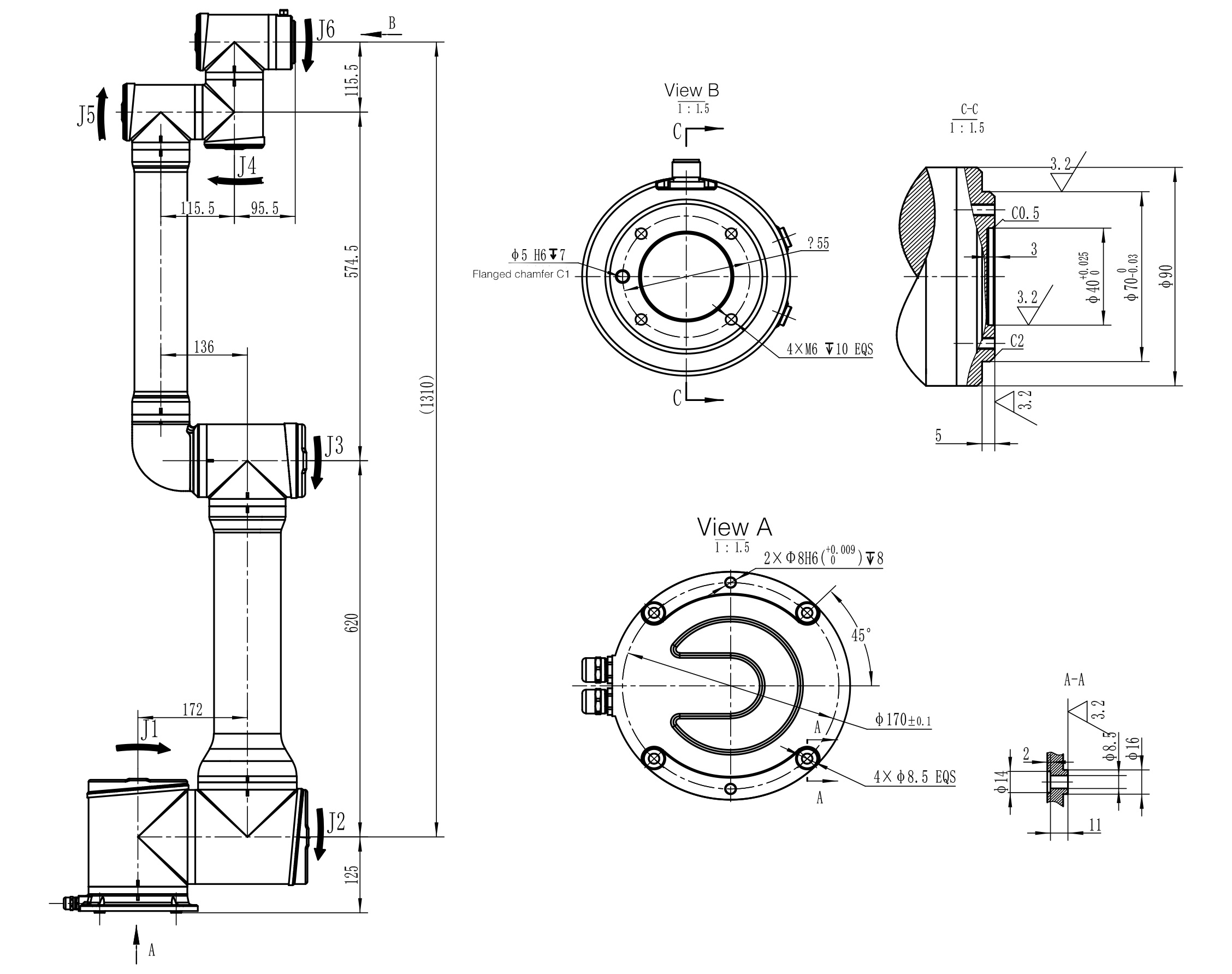

Parametric diagram
