TURIN Robot
TR05-900C
TR05-900C
Category:
Model：TR05-900C Load：5kg Wingspan：900mm
Model:
TR05-900C
Payload:
5kg
Arm Reach:
900mm
keyword:
weld
stamping
Hardware polishing
carry
Due to improvements and optimizations, specifications and appearance may change without further notice. We apologize for any inconvenience caused!
Details
Parameter Table
| TR05-900C | |||
| Payload | 5kg | ||
| Arm Reach | 900mm | ||
| DOF | 6 | ||
| Power Supply | 90~264VAC,47~63Hz/48VDC | ||
| Programming | Drag teaching, graphic pages | ||
| Security Module | More than 20 adjustable safety features including collision detection, virtual wall and collaboration mode | ||
| Certification | EN ISO13849-1, Cat.3, EN ISO10218-1, European Union CE certification | ||
| Position Repeatability | ±0.03mm | ||
| Protection Rating | IP54/IP67 | ||
| Max Speed | J1 | 180°/s | |
| J2 | 180°/s | ||
| J3 | 180°/s | ||
| J4 | 180°/s | ||
| J5 | 180°/s | ||
| J6 | 180°/s | ||
| Max Operation Area | J1 | ±175° | |
| J2 | ±175° | ||
| J3 | -245°~65° | ||
| J4 | ±175° | ||
| J5 | ±175° | ||
| J6 | ±360° | ||
| Noise Level | Laeq≤85dB(A) | ||
| Rated Power | 2.55kw | ||
| Applicable Environment | Temperature | 0~45°C | |
| Humidity | 20%~80%RH（No Condensation） | ||
| Body Weight |
26kg |
||
| Control Cabinet | TRC5-G06 | ||
| Installation Method | Installation at Any Angle | ||

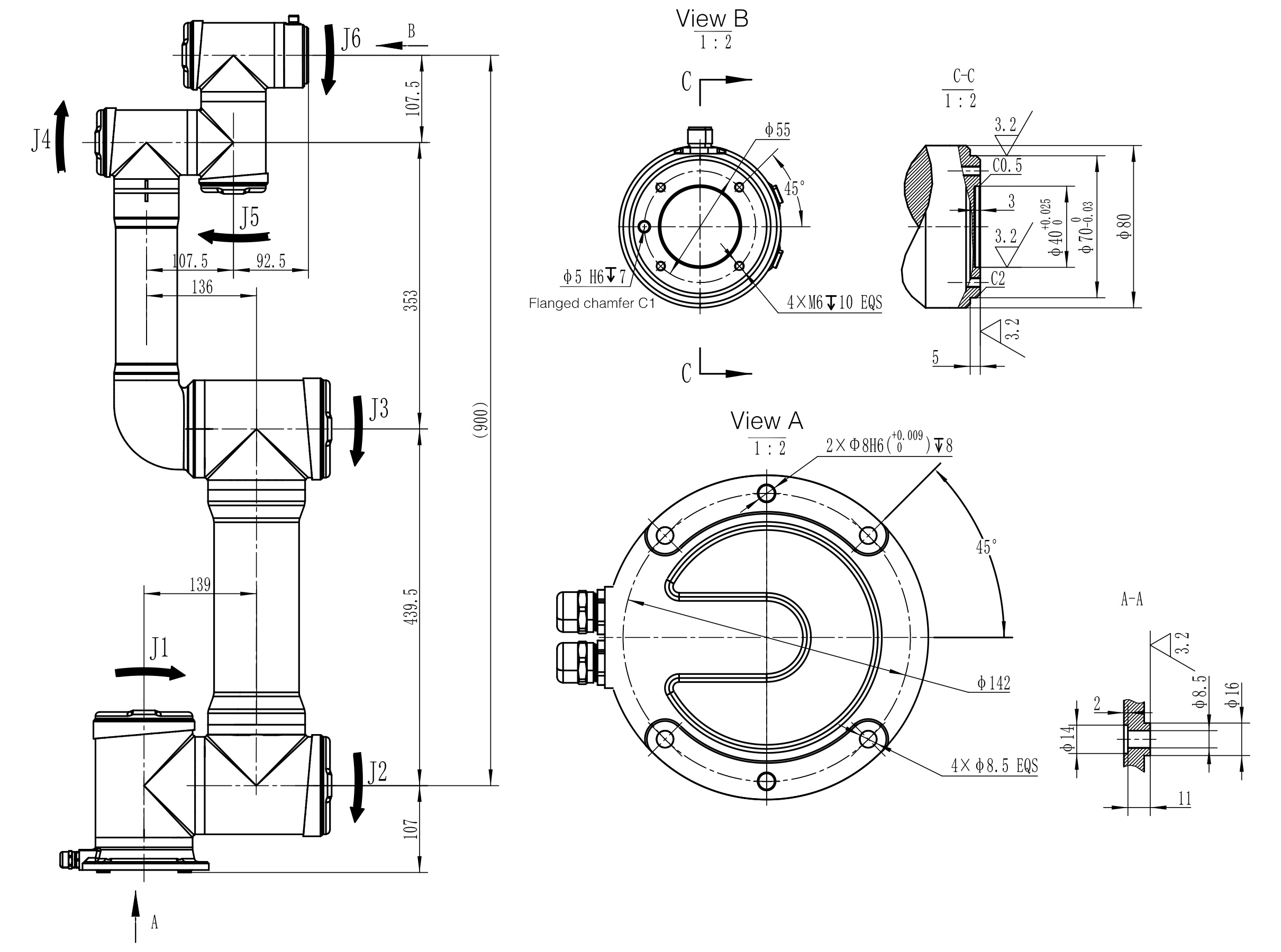

Parameter Diagram
