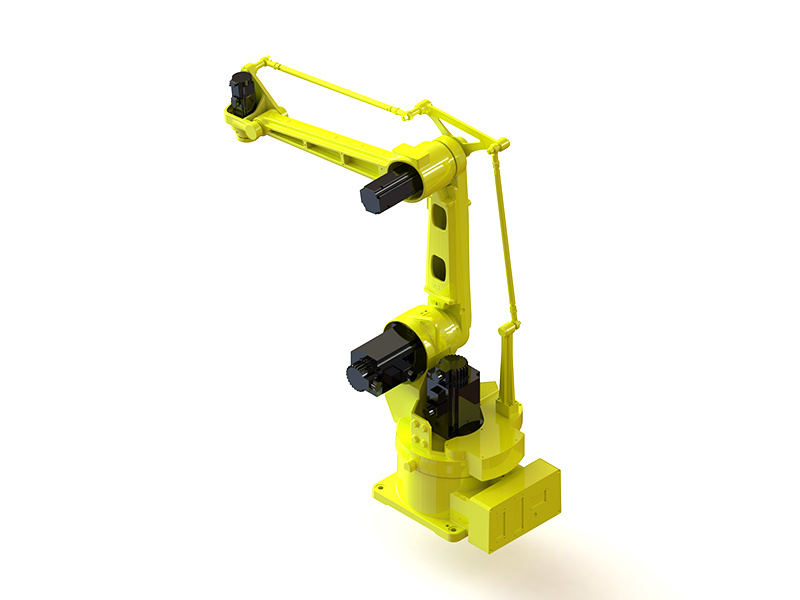

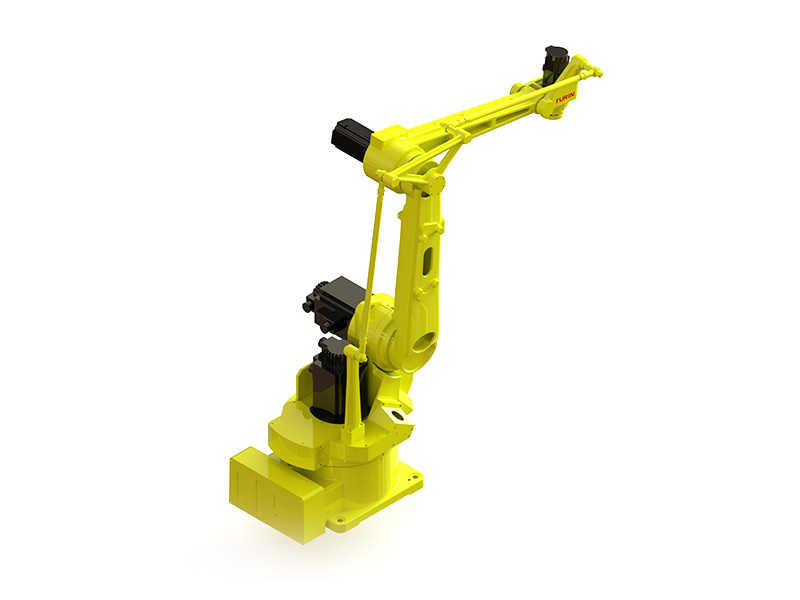

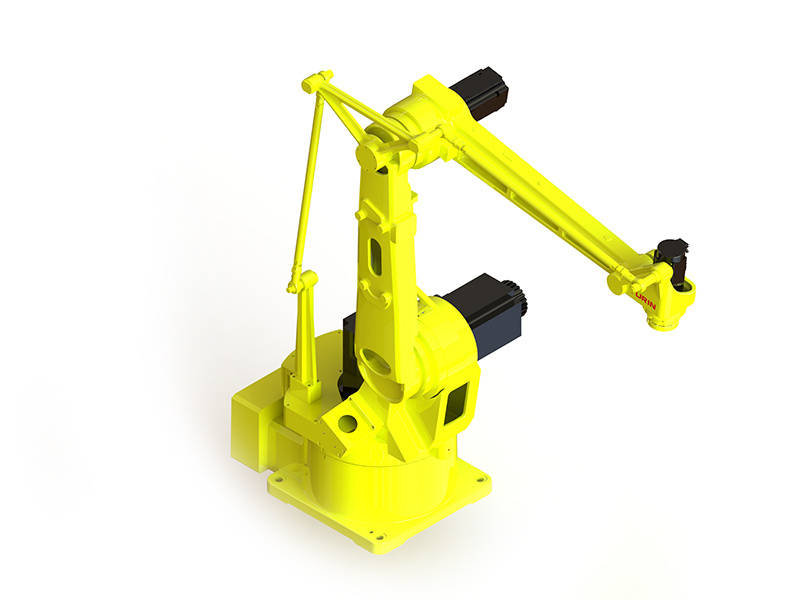

TURIN Robot
TKB4600
TKB4600
Category:
Model：TKB4600 Load：12kg Wingspan：1435mm
Model:
TKB4600
Payload:
12kg
Arm Reach:
1435mm
keyword:
weld
punching press
Hardware polishing
carry
Product Consultation:
Details
Parameter Table
|
Model
|
TKB4600
|
|
| Payload | 12kg | |
| Max Working Radius | 1435mm | |
| DOF | 4-axis | |
| Body Weight | 175kg | |
| Rated Power | 2.5kw | |
| Max Speed | J1 | 210°/s |
| J2 | 205°/s | |
| J3 | 185°/s | |
| J4 | 500°/s | |
| Max Operation Area | J1 | ±175° |
| J2 | 85°~-35° | |
| J3 | 70°~-90° | |
| J4 | ±330° | |
| protective specification | IP54 | |
| Position Repeat Accuracy | ±0.08mm | |
| controller | TRC5-B06 | |
| Working Temperature | 0~45℃ | |

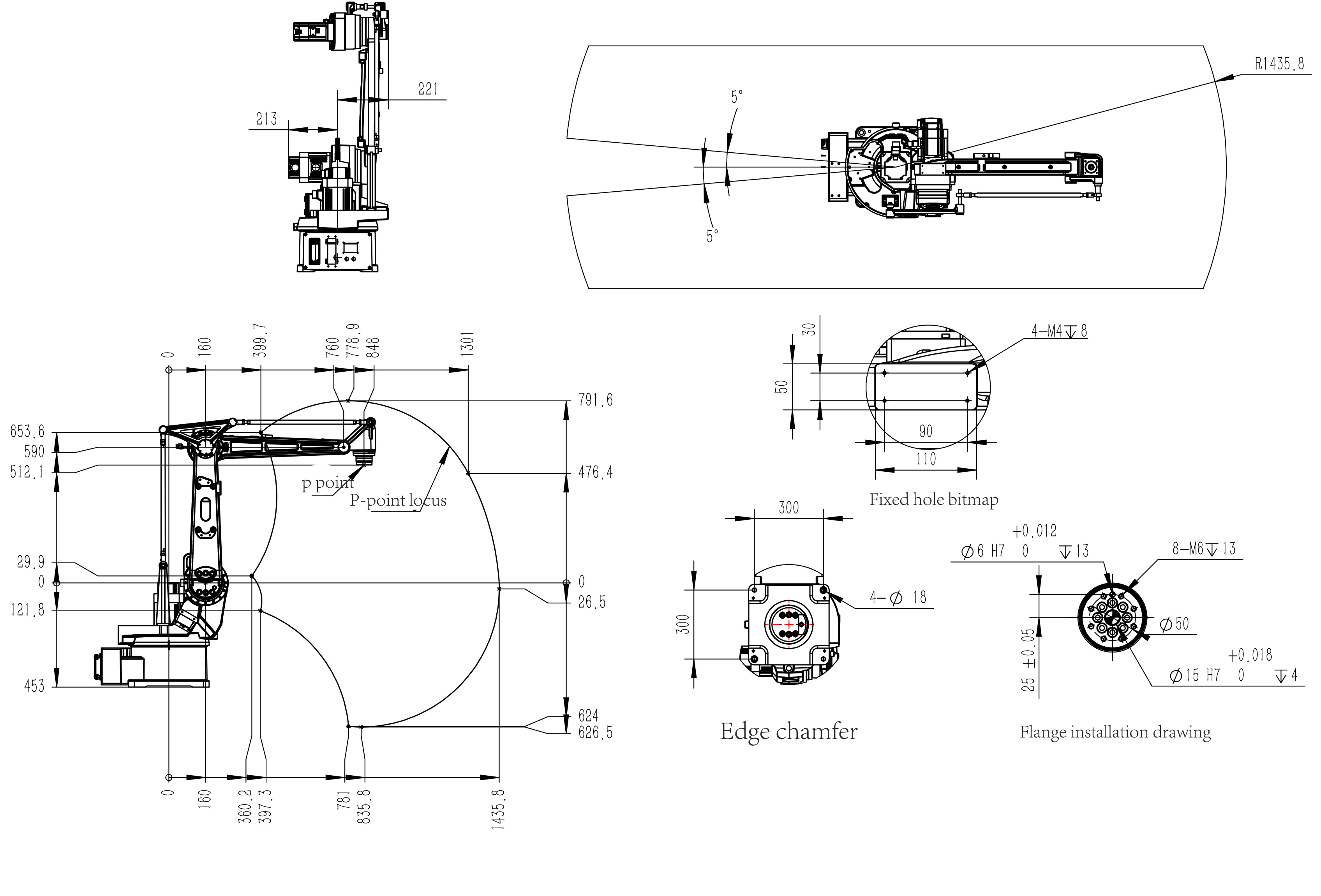

Parameter diagram
