TURIN Robot

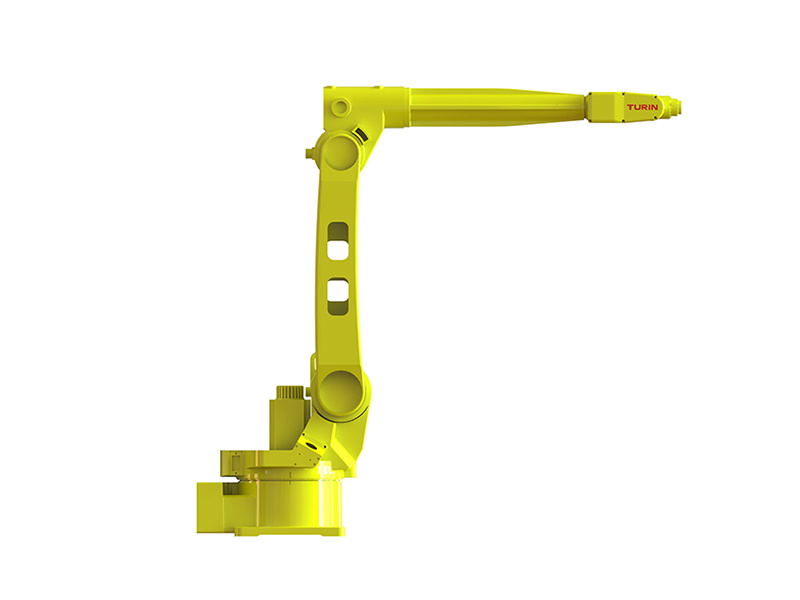

TKB1900
TKB1900
Category:
Model：TKB1900 Load：4kg Wingspan： 1898mm
Model:
TKB1900
Payload:
4kg
Arm Reach:
1898mm
keyword:

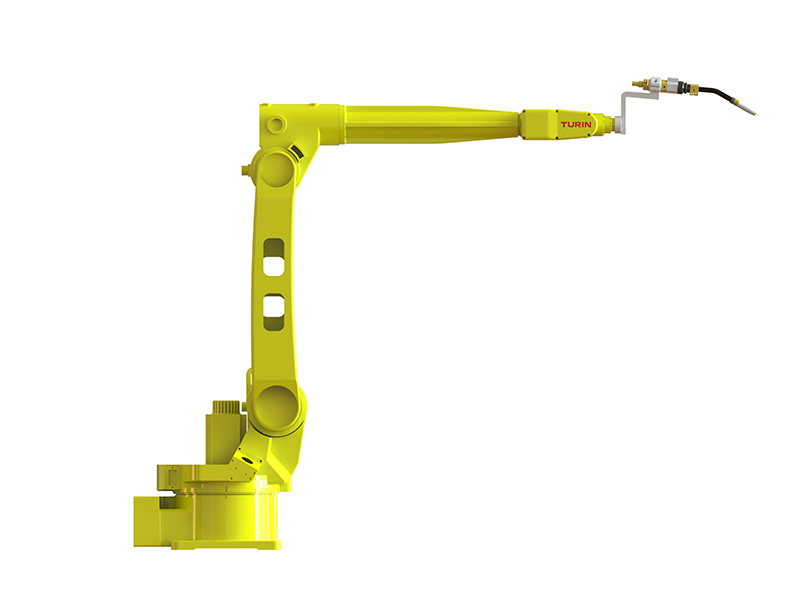

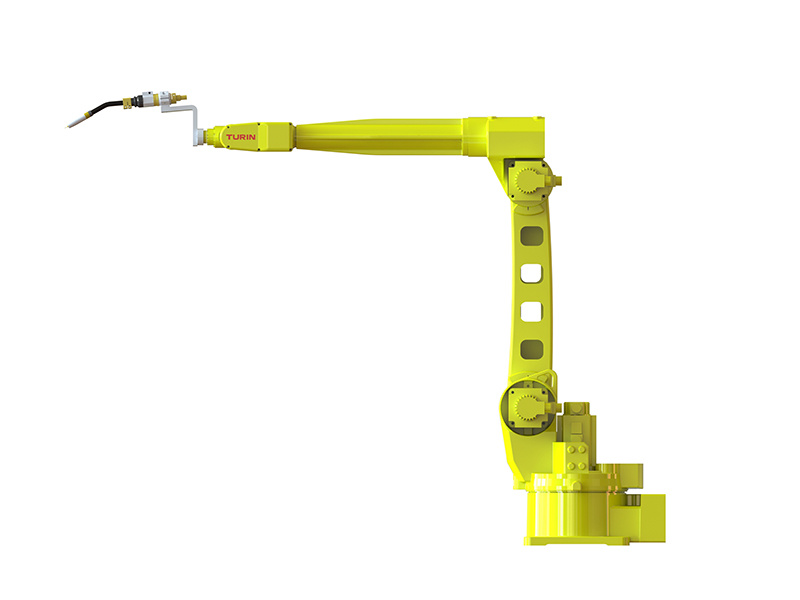

weld
punching press
Hardware polishing
carry
Product Consultation:
Details
Parameter Table
|
Model
|
TKB1900
|
|
| Max Working Radius | 1898mm | |
| DOF | 6-axis | |
| Body Weight | 190kg | |
| Rated Power | 4kw | |
| Max Speed | J1 | 220°/s |
| J2 | 182°/s | |
| J3 | 180°/s | |
| J4 | 390°/s | |
| J5 | 360°/s | |
| J6 | 600°/s | |
| Max Operation Area | J1 | ±170° |
| J2 | 153°~-92° | |
| J3 | 80°~-100° | |
| J4 | ±150° | |
| J5 | ±120° | |
| J6 | +360° | |
| protective specification | IP54/IP67(The fifth and sixth axes are optional) | |
| Position Repeat Accuracy | ±0.08mm | |
| controller | TRC5-B06 | |
| Working Temperature | 0~45℃ | |

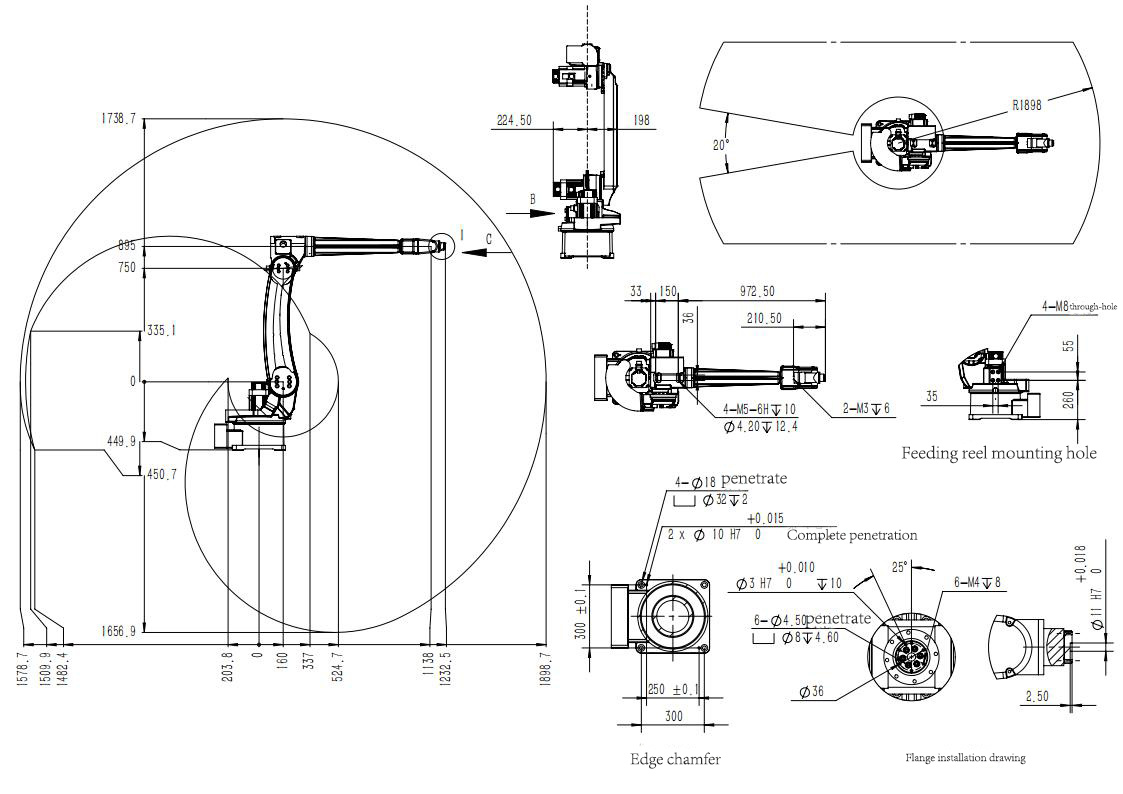

Parameter diagram
