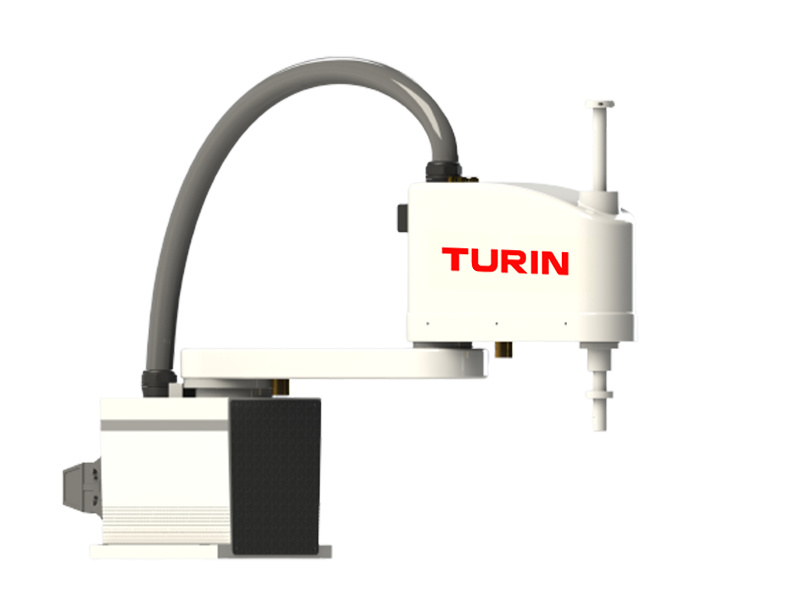

TURIN Robot
STW060-500/600/700
STW060-500/600/700
Category:
Model：STW060 Load：6kg Wingspan：500/600/700mm
Model:
STW060
Payload:
6kg
Arm Reach:
700mm
keyword:
robot
weld
stamping
Product Consultation:
Details
Parameter table
|
STW060 series
|
J1 axis | J2 axis | J3 axis | R-axis | ||||
| Shaft specifications | Arm length(mm) | STW060-500 | STW060-600 | STW060-700 | 300 | 200 | - | |
| 200 | 300 | 400 | ||||||
| Rotation range (degrees) | 139 | 139 | - | 360 | ||||
| -139 | -139 | -360 | ||||||
| Deceleration mechanism | Reducer | Harmonic transmission | Harmonic transmission | - | Harmonic transmission | |||
| Conduction mode | Motors and reducers | Direct connection | - | Timing pulley | ||||
| Reducer and output | Direct connection | |||||||
| Repeated positioning accuracy (XYZ:mm)(r:degree) | ±0.02 | ±0.01 | ±0.01 | |||||
| Maximum speed (XYZ:mm/sec)(r:degree/sec) | 7693/8478/9263 | 1000 | 3500 | |||||
| Payload(kg) | 6KG | |||||||
| STANDARD CYCLE TIME: 1KG HANDLING TIME (SEC) | 0.4 seconds | |||||||
| ALLOWABLE MOMENT OF INERTIA ON THE R-AXIS (KGm2) | 0.05 | |||||||
| Input (IN) Output (OUT) | 0.2*10 | |||||||
| User piping (outflow) | F6*3 | |||||||
| Robot cable length(m) | Standard: 3 Optional: 5 | |||||||
| Main unit weight(KG) | 37.5~42KG | |||||||
| Control cabinet | TRC3-A04 | |||||||

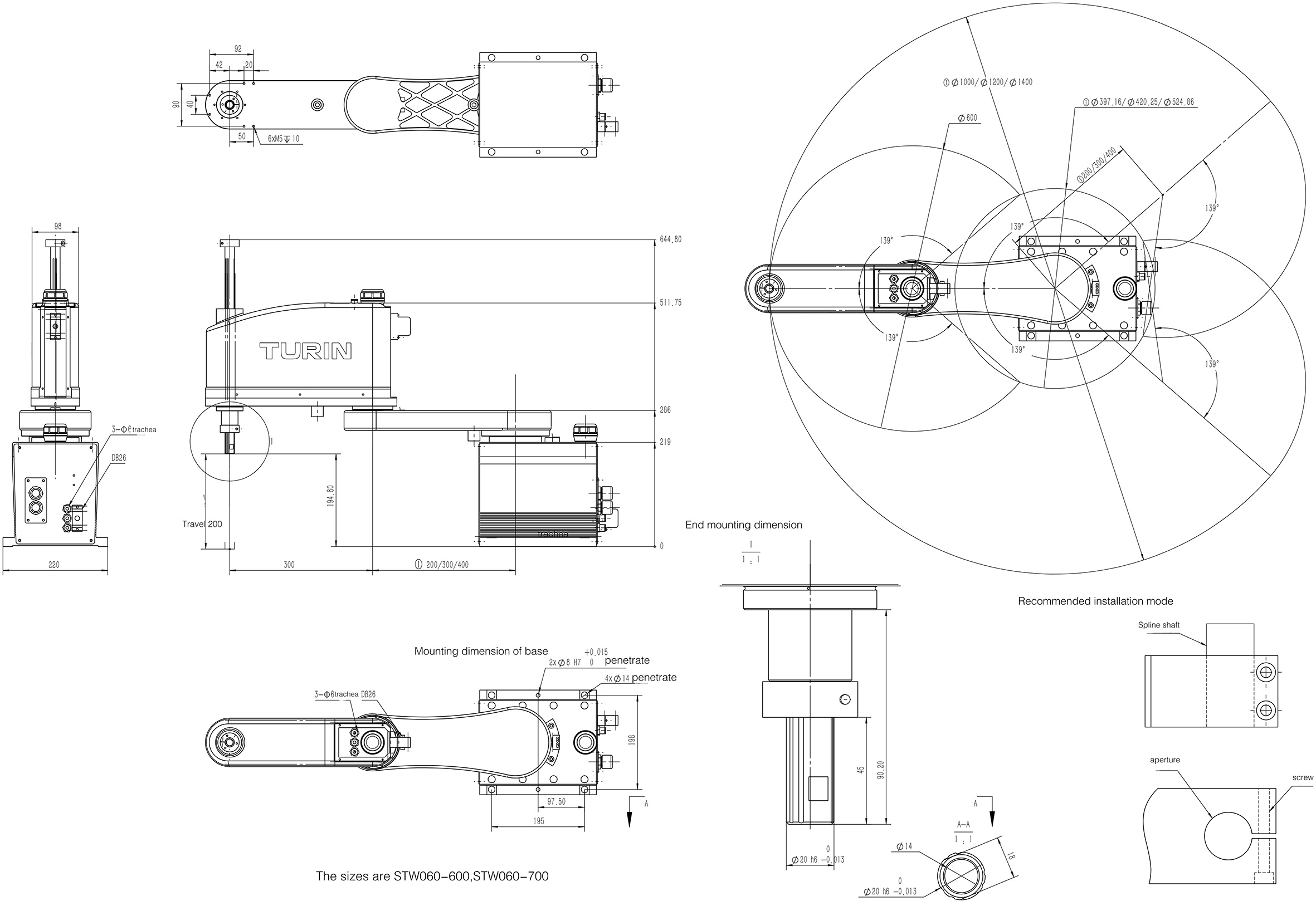

Parametric diagram
