TURIN Robot
STH500-1200
STH500-1200
Category:
Model：STH500-1200 Load：50kg Wingspan：1200mm
Model:
STH500-1200
Payload:
50kg
Arm Reach:
1200mm
keyword:
robot
weld
stamping
Product Consultation:
Details
Parameter table
|
STH500-1200
|
J1 axis | J2 axis | J3 axis | R-axis | ||
| Shaft specifications | Arm length(mm) | 550 | 650 | 400 | - | |
| Rotation range (degrees) | 130 | 150 | - | 180 | ||
| -130 | -150 | -180 | ||||
| Deceleration mechanism | Reducer | Planetary gears | Planetary gears | Ball screw | Harmonic transmission | |
| Conduction mode | Motors and reducers | Direct connection | Timing pulley | |||
| Reducer and output | Direct connection | |||||
| Repeated positioning accuracy (XYZ:mm)(r:degree) | ±0.05 | ±0.02 | ±0.005 | |||
| Maximum speed (XYZ:mm/sec)(r:/sec) | 10162 | 1000 | 720 | |||
| Payload(kg) | 50kg | |||||
| STANDARD CYCLE TIME: 1KG HANDLING TIME (SEC) | 0.98 | |||||
| Allowable moment of inertia on the R-axis (kgm2) | 4.35 | |||||
| Input (IN) Output (OUT) | 0.2*20 | |||||
| User piping (outflow) | F6*3 | |||||
| Robot cable length(m) | Standard: 3 Optional: 5 | |||||
| Main unit weight(kg) | 170kg | |||||
| Control cabinet | TRC3-A06 | |||||

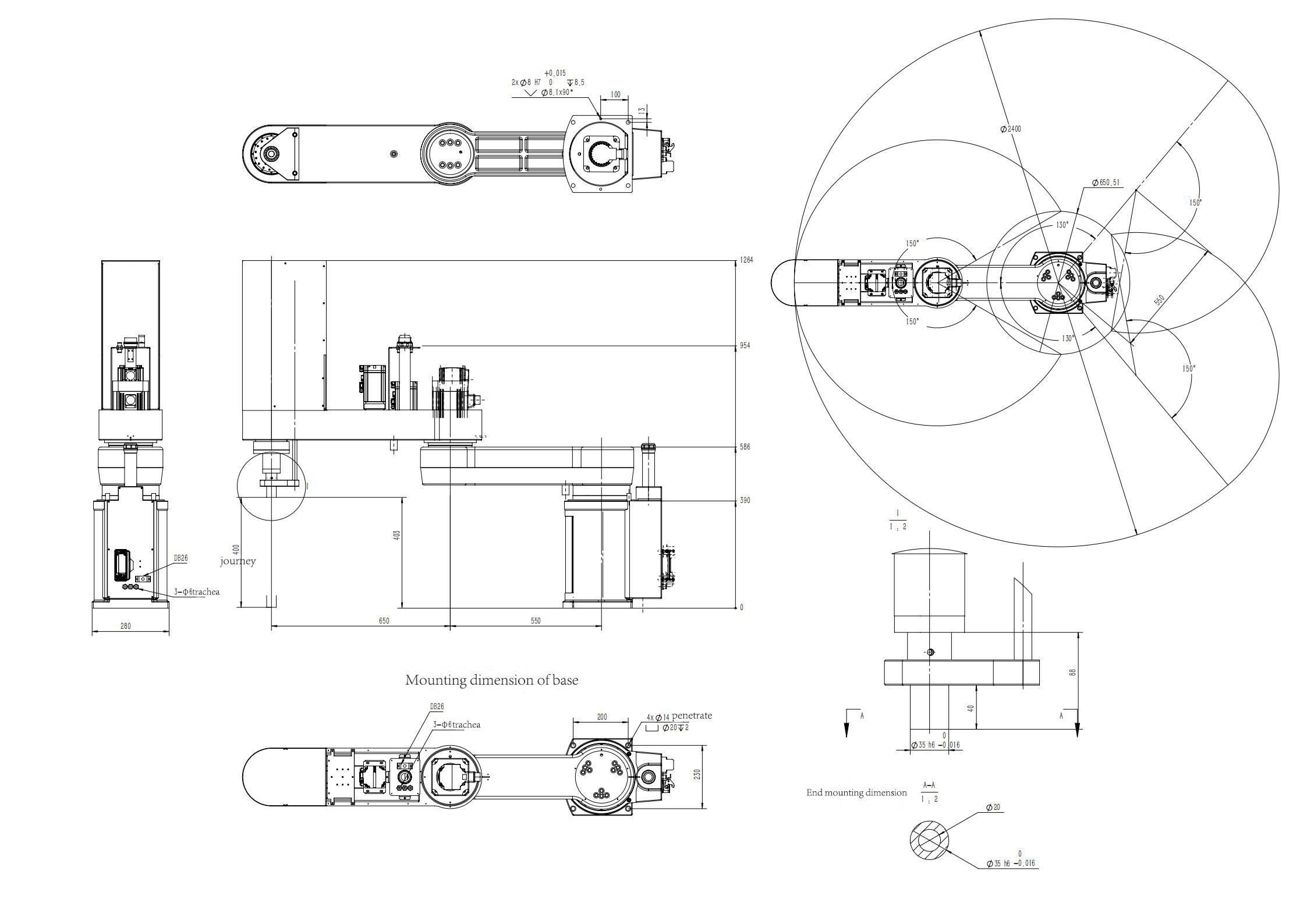

Parametric diagram
