TURIN Robot
TKB6700
TKB6700
Category:
Model：TKB6700 Load：210kg Wingspan：2696mm
Model:
TKB6700
Payload:
210kg
Arm Reach:
2696mm
keyword:
weld
punching press
Hardware polishing
carry
Product Consultation:
Details
Parameter Table
|
Model
|
TKB6700
|
|
|
Payload
|
210KG
|
|
| Max Working Radius | 2696mm | |
| DOF | 6-axis | |
| Body Weight | 1131KG | |
| Rated Power | 8.5kw | |
| Max Speed | J1 | 123°/s |
| J2 | 115°/s | |
| J3 | 112°/s | |
| J4 | 179°/s | |
| J5 | 172°/s | |
| J6 | 219°/s | |
| Max Operation Area | J1 | ±185° |
| J2 | -50°~85° | |
| J3 | -155°~120° | |
| J4 | ±350° | |
| J5 | ±125° | |
| J6 | +350° | |
| protective specification | J5J6 | IP67 |
| other | IP54 | |
| Position Repeat Accuracy | ±0.1mm | |
| controller | TRC3-C06 | |
| Working Temperature | 0~45℃ | |

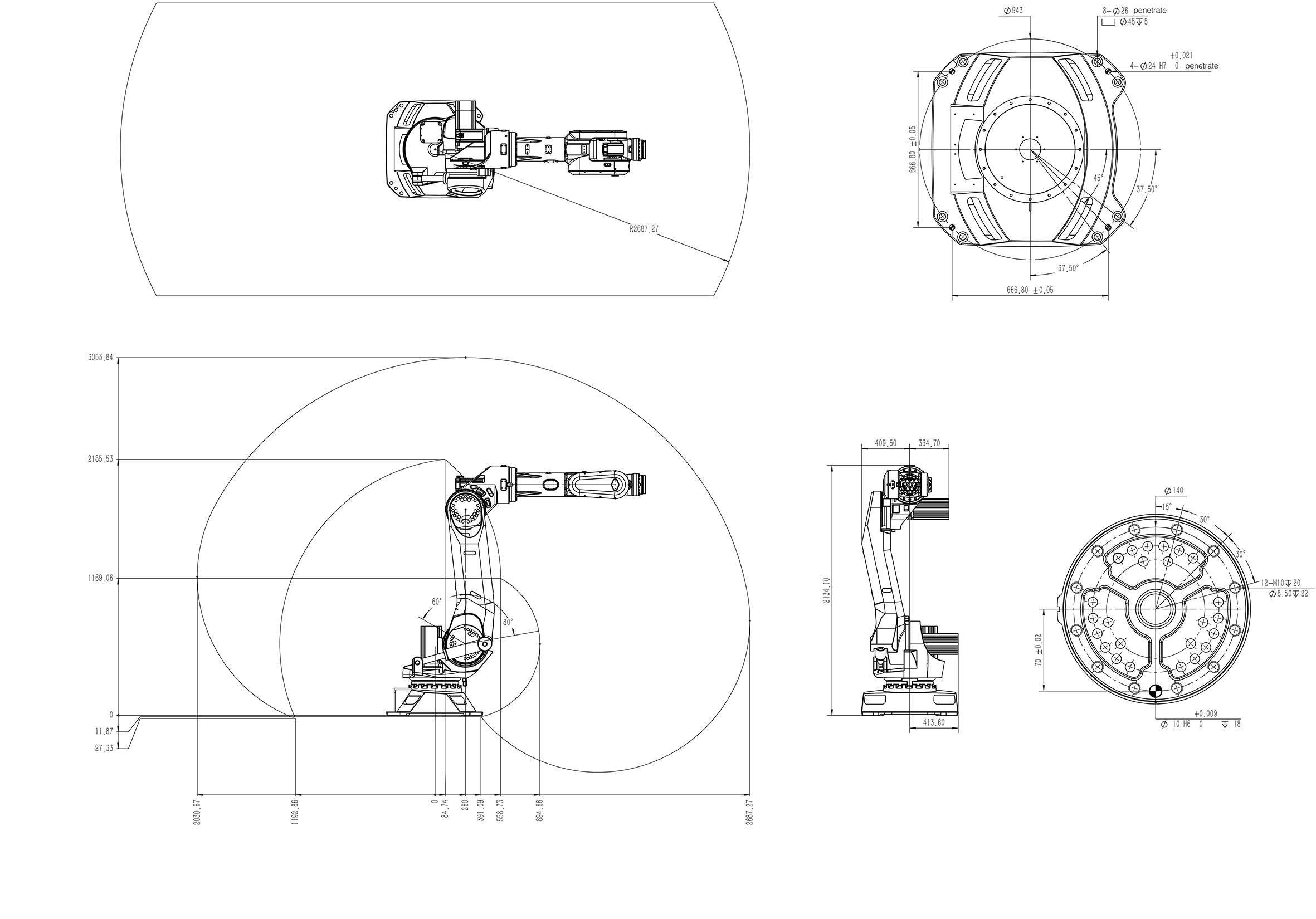

Parameter diagram
