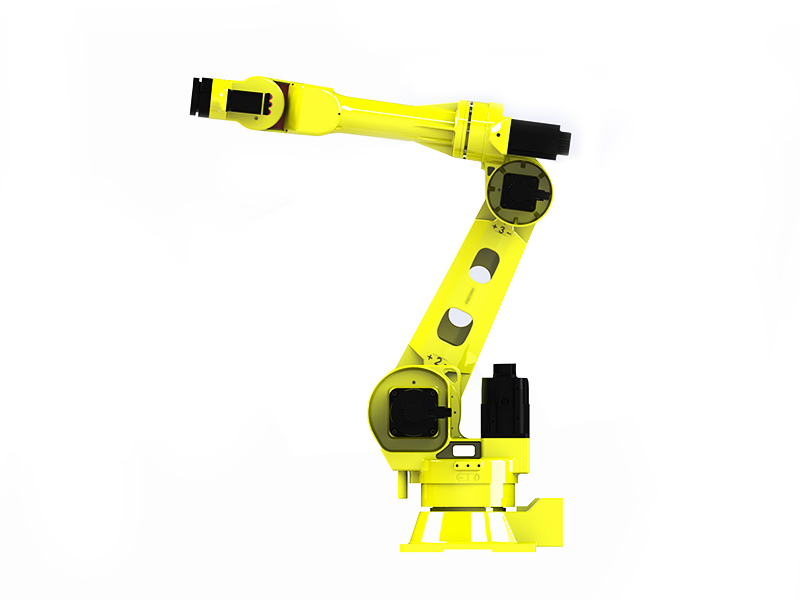

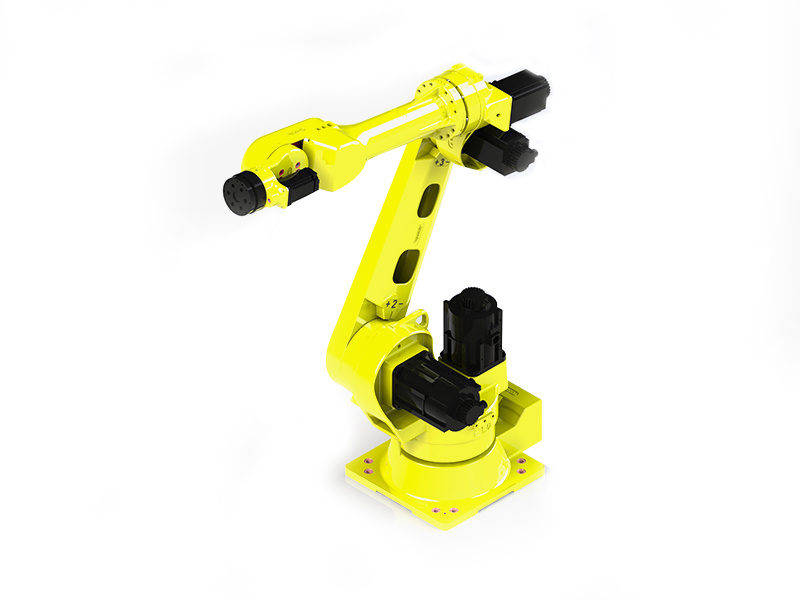

TURIN Robot
TKB5600
TKB5600
Category:
Model ：TKB5600 Load：60kg Wingspan：2119mm
Model:
TKB5600
Payload:
60kg
Arm Reach:
2119mm
keyword:
weld
punching press
Hardware polishing
carry
Product Consultation:
Details
Parameter Table
|
Model
|
TKB5600
|
|
|
Payload
|
60kg
|
|
| Max Working Radius | 2119mm | |
| DOF | 6-axis | |
| Body Weight | 600Kg | |
| Rated Power | 6.5KW | |
| Max Speed Max Operation Area | J1 | 127°/s |
| J2 | 105°/s | |
| J3 | 165°/s | |
| J4 | 253°/s | |
| J5 | 250°/s | |
| J6 | 372°/s | |
| J1 | ±165° | |
| J2 | 135°~-90° | |
| J3 | 90°~-185° | |
| J4 | ±200° | |
| J5 | ±105° | |
| J6 | ±360° | |
| protective specification | IP54 | |
| Position Repeat Accuracy | ±0.08mm | |
| controller | TRC3-C06 | |
| Working Temperature | 0~45℃ | |
Parameter diagram
