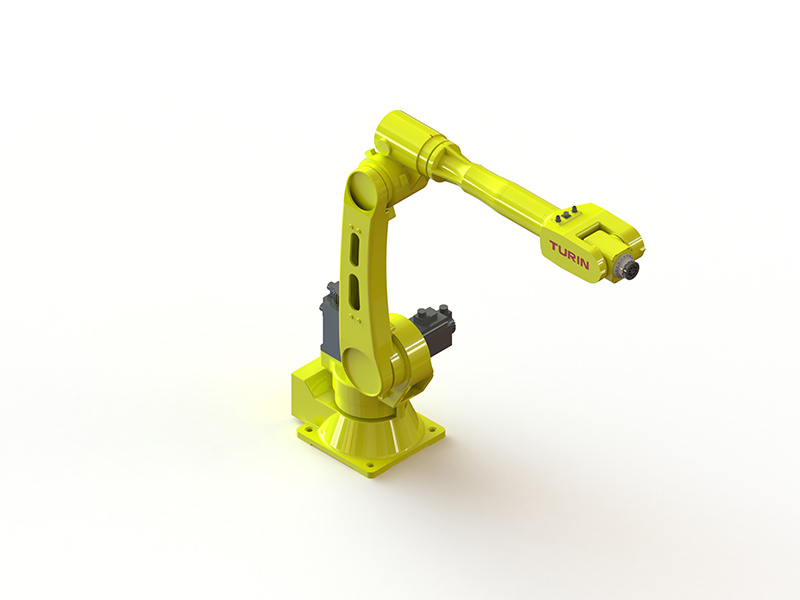

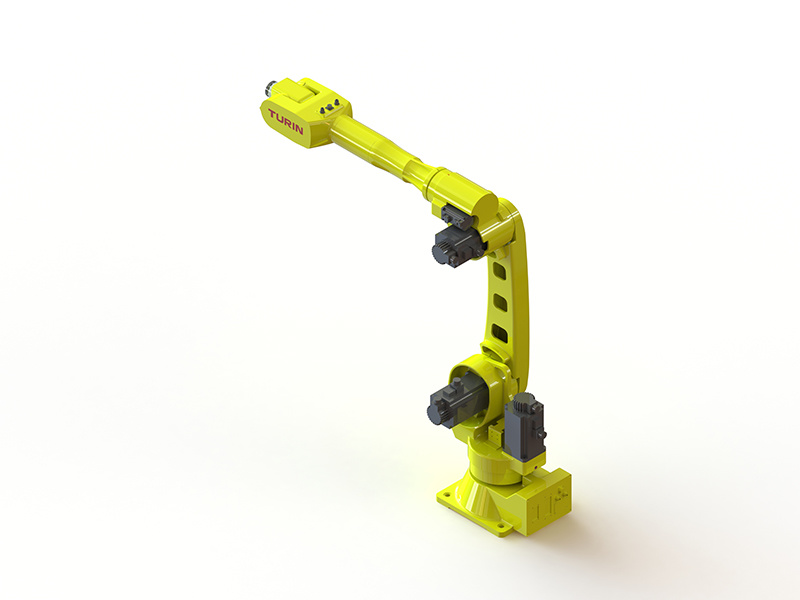

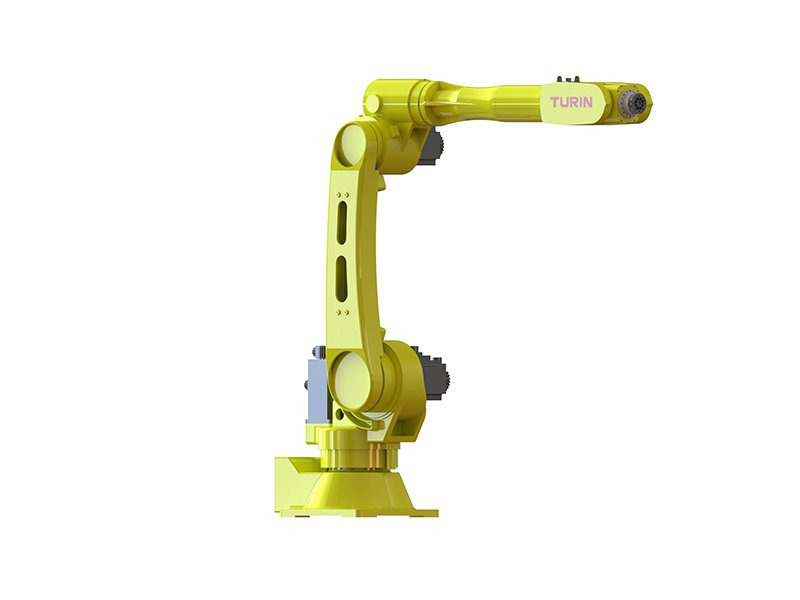

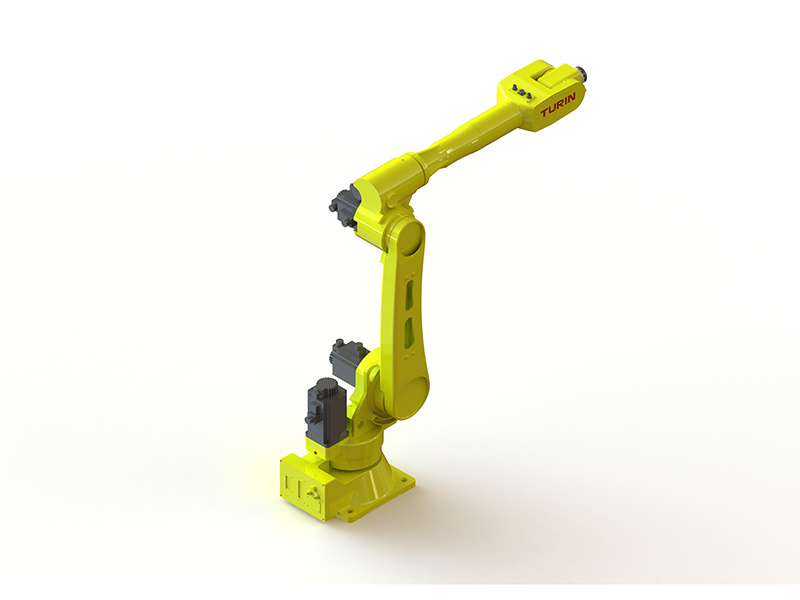

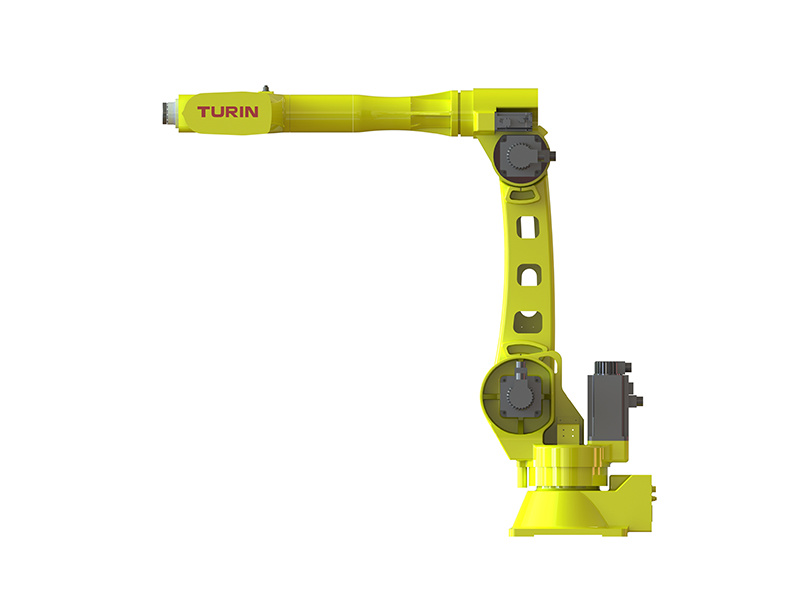

TURIN Robot
TKB2690
TKB2690
Category:
Model ：TKB2690 Load ：20kg Wingspan：19210mm
Model:
TKB2690
Payload:
20kg
Arm Reach:
1920mm
keyword:
weld
punching press
Hardware polishing
carry
Product Consultation:
Details
Parameter Table
|
Model
|
TKB2690
|
|
| Payload | 20kg | |
| Max Working Radius | 1920mm | |
| DOF | 6-axis | |
| Body Weight | 220kg | |
| Rated Power | 4.7kw | |
| Max Speed | J1 | 186°/s |
| J2 | 186°/s | |
| J3 | 200°/s | |
| J4 | 452°/s | |
| J5 | 400°/s | |
| J6 | 555°/s | |
| Max Operation Area | J1 | ±160° |
| J2 | 150°~-90° | |
| J3 | 80°~-100° | |
| J4 | ±150° | |
| J5 | ±110° | |
| J6 | ±300° | |
| protective specification | IP54/IP67(The fifth and sixth axes are optional) | |
| controller | TRC5-B06 | |
| Position Repeat Accuracy | ±0.05mm | |
| Working Temperature | 0~45℃ | |
Parameter diagram
