Products.
TURIN Robot
TKB1210
TKB1210
Category:
Model：TKB1210 Load ：7kg Wingspan：960mm
Model:
TKB1210
Payload:
7kg
Arm Reach:
960mm
keyword:
weld
punching press
Hardware polishing
carry
Product Consultation:
Details
Parameter Table
| Model | TKB1210 | |
| Payload | 7KG | |
| Max Working Radius | 960mm | |
| DOF | 6-axis | |
| Body Weight | 49KG | |
| Rated Power | 2.4KW | |
| Max Speed | J1 | 450°/s |
| J2 | 450°/s | |
| J3 | 450°/s | |
| J4 | 458°/s | |
| J5 | 720°/s | |
| J6 | 720°/s | |
| Max Operation Area | J1 | ±170° |
| J2 | 135°~-70° | |
| J3 | 75°~-75° | |
| J4 | ±160° | |
| J5 | ±120° | |
| J6 | +360° | |
| protective specification | IP54/IP67(The fifth and sixth axes are optional) | |
| Position Repeat Accuracy | ±0.04mm | |
| controller | TRC3-A06 | |
| Working Temperature | 0~45℃ | |

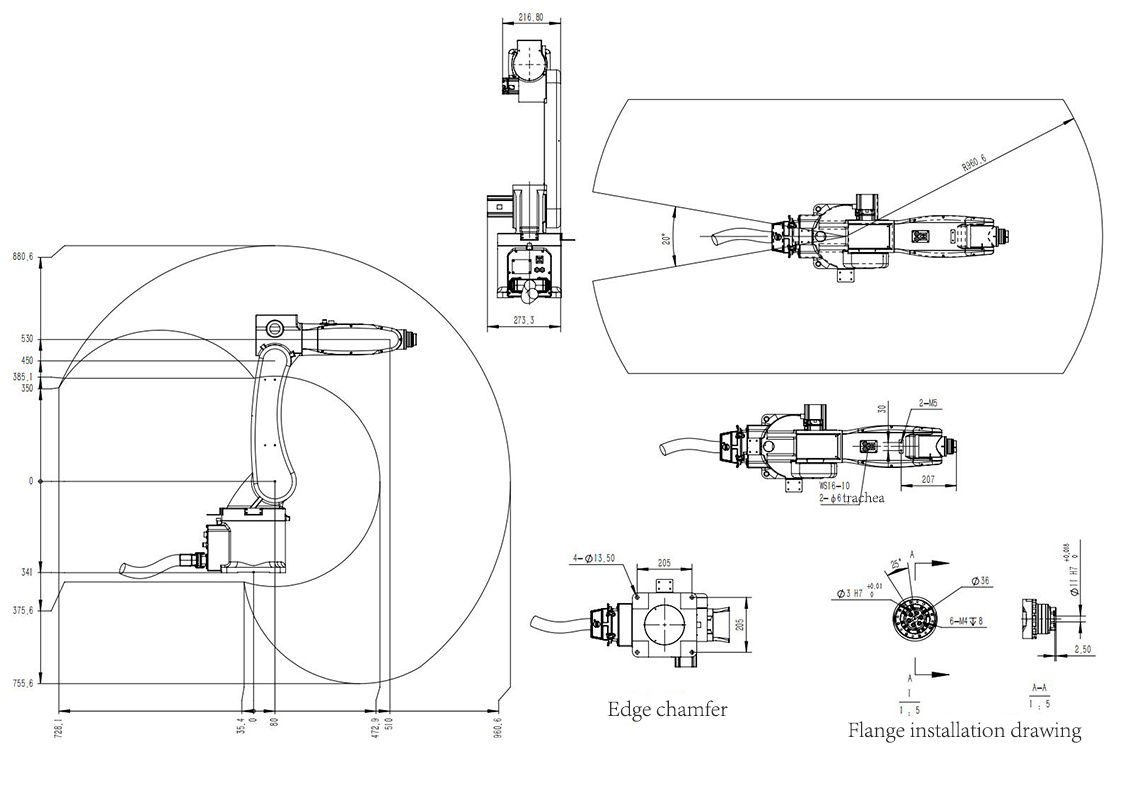

Parameter diagram
