TURIN Robot
TKB2030
TKB2030
Category:
Model：TKB2030 Load：6kg Wingspan：2078mm
Model:
TKB2030
Payload:
6kg
Arm Reach:
2078mm
keyword:
weld
punching press
Hardware polishing
carry
Product Consultation:
Details
Parameter Table
|
Model
|
TKB2030
|
|
|
Payload
|
6kg
|
|
| Max Working Radius | 2078mm | |
| DOF | 6-axis | |
| Body Weight | 210kg | |
| Rated Power | 4.3kw | |
| Max Speed | J1 | 168°/s |
| J2 | 148°/s | |
| J3 | 160°/s | |
| 14 | 330°/s | |
| J5 | 450°/s | |
| J6 | 700°/s | |
| Max Operation Area | J1 | ±160° |
| J2 | 150°~-90° | |
| J3 | 75°~-100° | |
| J4 | ±190° | |
| J5 | ±130° | |
| J6 | ±360° | |
| protective specification | IP54 | |
| Position Repeat Accuracy | ±0.07mm | |
| controller | TRC5-B06 | |
| Working Temperature | 0~45℃ | |

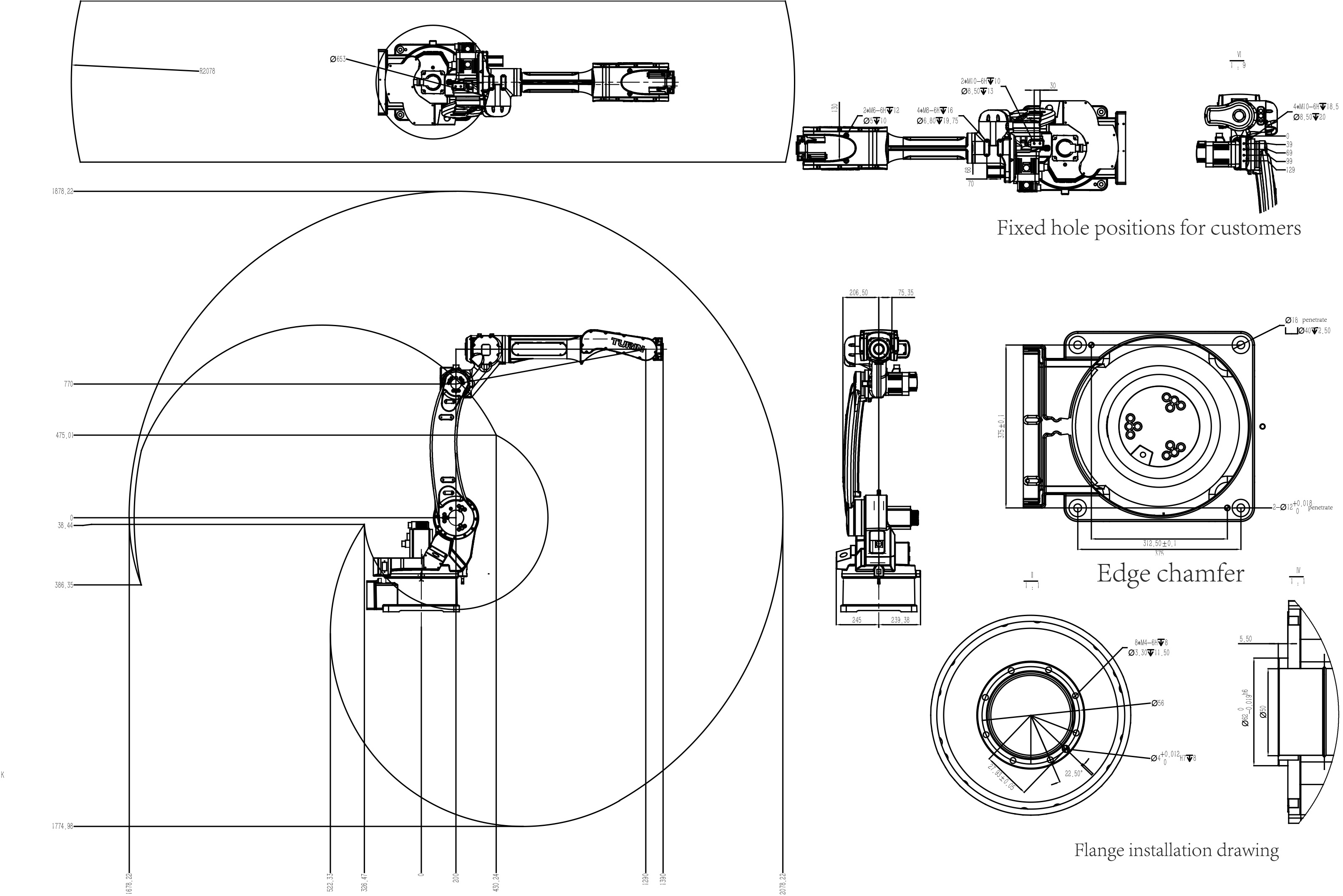

Parameter diagram
