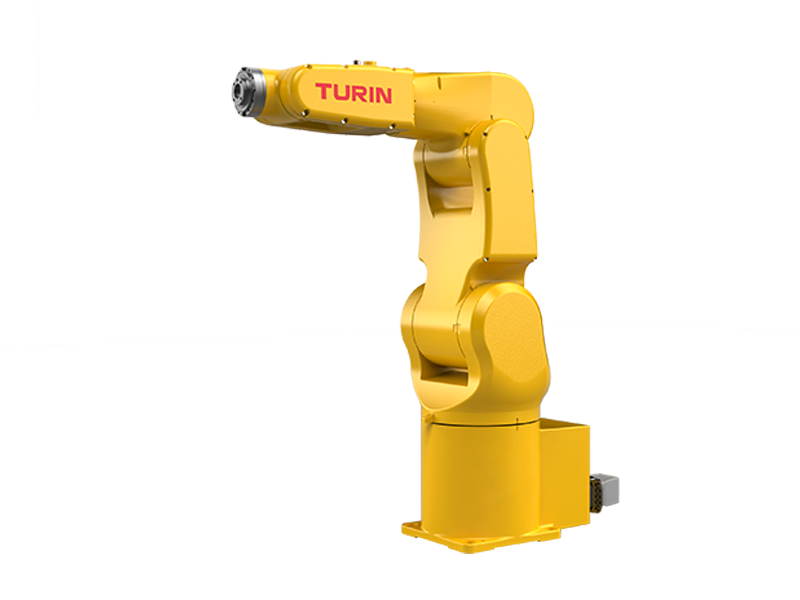

TURIN Robot
TKB1010
TKB1010
Category:
Model：TKB1010 Load：1kg Wingspan：370mm
Model:
TKB1010
Payload:
1kg
Arm Reach:
370mm
keyword:
weld
punching press
Hardware polishing
carry
Product Consultation:
Details
Parameter Table
| Model | TKB1010 | |
| Payload | 1KG | |
| Max Working Radius | 370mm | |
| DOF | 6-axis | |
| Body Weight | 15KG | |
| Rated Power | 0.4KW | |
| Max Speed | J1 | 320°/s |
| J2 | 320°/s | |
| J3 | 375°/s | |
| J4 | 500°/s | |
| J5 | 470°/s | |
| J6 | 500°/s | |
| Max Operation Area | J1 | ±170° |
| J2 | 120°~-80° | |
| J3 | 50°~-180° | |
| J4 | ±170° | |
| J5 | ±125° | |
| J6 | ±360° | |
| protective specification | IP54 | |
| Position Repeat Accuracy | ±0.01mm | |
| controller | A06 | |
| Working Temperature | 0~45℃ | |

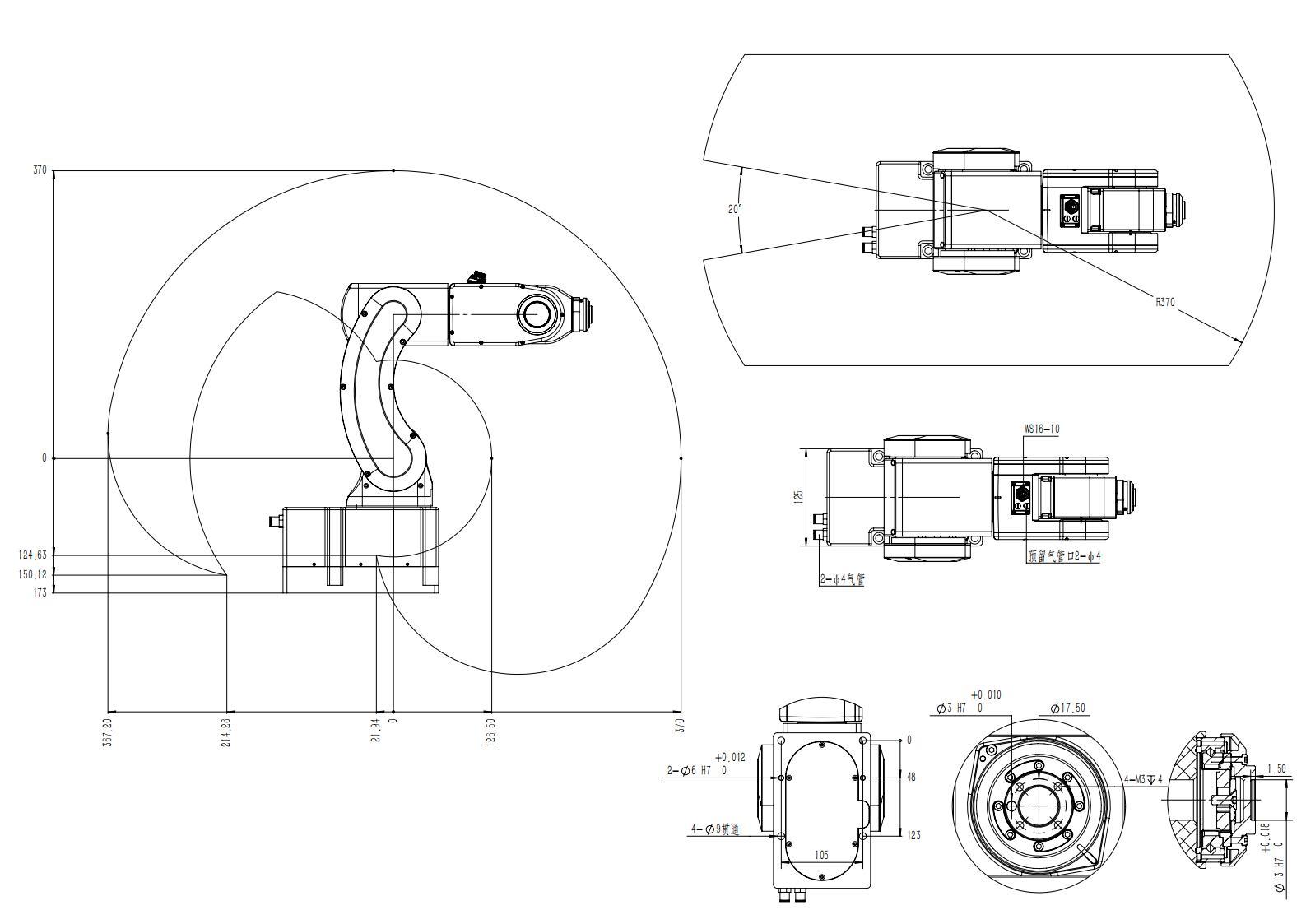

Parameter diagram
