Products.
TURIN Robot
TCR300
TCR300
Category:
Model：TCR300 Load：30kg Wingspan：1800mm
Model:
TCR300
Payload:
30kg
Arm Reach:
1800mm
keyword:
weld
stamping
Hardware polishing
transport
Product Consultation:
Details
Parameter table
| Model |
TCR300
|
|
| Load average |
30kg
|
|
| Maximum working radius |
1800mm
|
|
| Body weight |
154kg
|
|
| Rated power |
5.95kW
|
|
| Joint speed | J1 | 100°/s |
| J2 | 100°/s | |
| J3 | 150°/s | |
| J4 | 180°/s | |
| J5 | 180°/s | |
| J6 | 180°/s | |
| Joint range | J1 | ±175° |
| J2 | ±175° | |
| J3 | -245°~+65° | |
| J4 | ±175° | |
| J5 | ±175° | |
| J6 | ±360° | |
| Degree of protection | IP54 | |
| Repeatable positioning accuracy | ±0.1mm | |
| Control cabinet | TRC5-G06 | |
|
Operating temperature
|
0~45℃
|
|

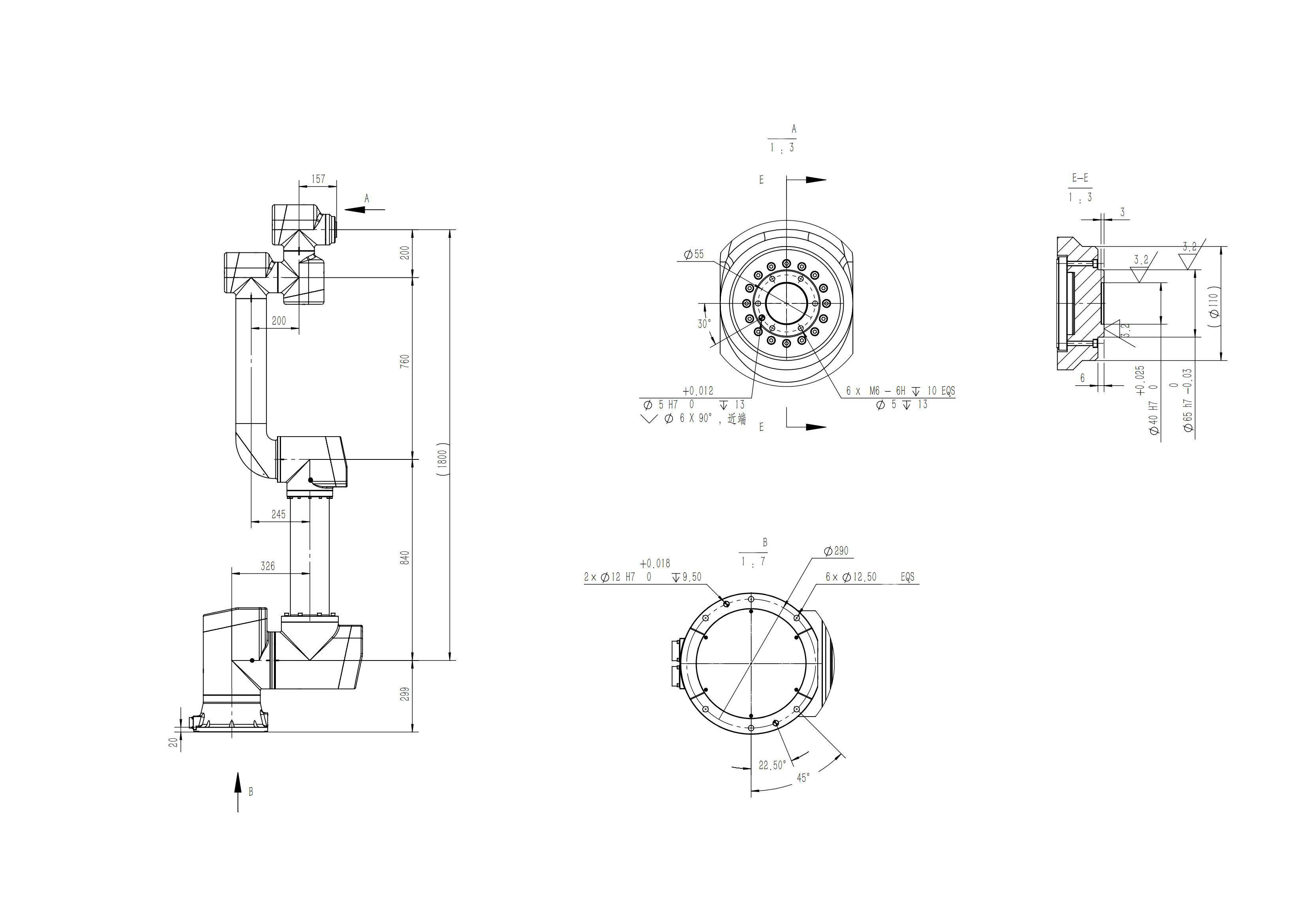

Parametric diagram
